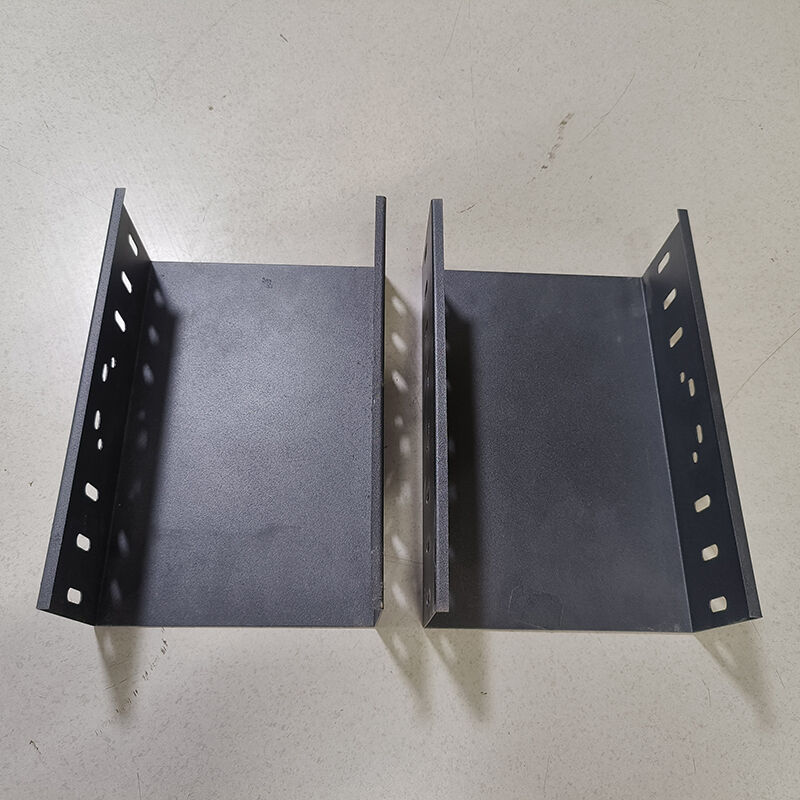

Seismic Braced Slotted Cable Tray Earthquake Zone Industrial Cable Support Structure

This seismic braced slotted cable tray is engineered for plants in earthquake zones where cable routes must stay in place during ground movement. The heavy metal sheet body and reinforced folded rails give the slotted cable tray the structural toughness and locking strength needed under lateral and vertical shock.

As a robust cable support tray and slotted cable trunking, it carries everything from small control wires to bundles of large cross section power cables across a whole facility. Seismic brackets anchor the run, surface film coating adds heat protection, and customized logo printing supports project identification.

• Seismic Bracing Ready Structure
  Bracket points and joint plates suit standard seismic supports. The layout resists lateral sway, keeping the tray aligned during strong ground movement.
• Heavy Load Earthquake Rated
  Thick steel sheet and deep rails carry dense cable bundles. The rigid body avoids collapse that would interrupt power and control circuits.
• Reinforced Wide Slot Trough
  Wide slots spread heavy cables across the section. Even loading reduces stress concentration at brackets when shock loads are applied.
• Anchored Joint Connections
  High strength bolts and plates lock each section. Connections resist vibration and racking so the whole run moves as one stable system.

Seismic braced slotted cable trays serve power plants, refineries and process facilities in earthquake prone regions. This heavy load cable support tray and slotted cable trunking help keep critical cabling in place when it matters most.
