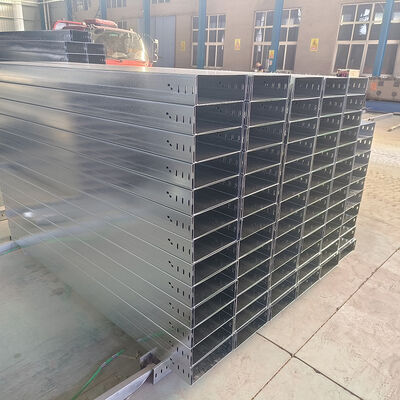

Heavy Duty Wide Span Slotted Cable Tray Multi Cable Support Structure for Large Plant Layouts

The heavy duty wide span slotted cable tray is made for large industrial layouts that carry many power and control cables at once. A deep U shaped profile and reinforced side rails support multiple large cross section cables across long, widely spaced spans.

This cable support tray also serves as rugged slotted cable trunking in production halls, substations and plant corridors. Locked joints, thick metal sheet and dependable fasteners keep the wiring system stable and reliable under heavy continuous load.

• Wide Span Load Capacity
  A deep trough and double folded side rails form a rigid beam that spans long support intervals. The design holds dense cable bundles steadily, reducing sag and the number of support brackets required.
• Multi Cable Support Structure
  Generous internal width separates power, control and signal groups into organized lanes. Multiple large diameter cables and small branch lines coexist without crowding or mechanical pressure.
• Reinforced Joint Locking
  Heavy gauge joint plates and high strength bolts lock adjacent sections into one continuous run. The connection resists vibration and thermal movement, maintaining alignment along the entire route.
• Impact and Puncture Resistance
  Thick metal sheet and folded edges absorb knocks from tools and moving equipment. The robust body protects inner conductors from punctures and abrasion during day to day plant operations.

Heavy duty wide span slotted cable trays are chosen for large plant layouts, substations, steel plants and logistics facilities. Where many thick cables run together over long routes, this high volume cable support tray and slotted cable trunking deliver dependable structural strength.
